Pile Driving Machine Photovoltaic Pile Drilling Rig Hydraulic Rotary Pile Driving Rig

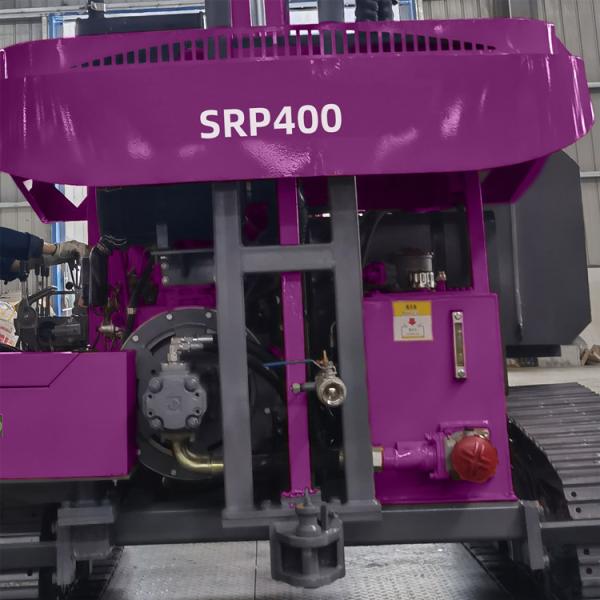

SRP400 Solar Pile Driver is kind of multifunctional pile construction machinery, with different configuration it can accomplish many fuctions, such as piling, pile extracting, and drilling on the stable layer of road before piling.. And mainly used in pile driving for photovoltaic solor power station , pile driving for highway guardrail, highway guardrail construction engineering construction, etc.
Feature:
With the crawler chasis and the advanced hydralic hammer or drilling head, the pile driver have great adaptablity to all kinds of terrians and complicated conditions.using new type of hydraulic technology, convenient for hole transfer . The drilling machine structure is compact, while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. the machine hydraulic pressure can be adjusted according to different soil textures,so as to achieve the appropriate impact power for pile driving.New model SRP400 hydraulic diesel solar pile driving driver machine equipment used with hammer is a new type of pile driver.
Products Description
| Model :SRP400 | | Product name:Solar Pile Driver | | Supporting power :Yuchai YCD4T22T-105A | | Dimensions (LxWxH):5000X2200X2550mm | | Net weight :5000kg | | Engine power :78kw | | Drilling diameter:90-400mm | | Depth ofeconomical drilling: 4-10m | | Drilling rod :φ89mmX3000mm | | Working Pressure :1.0-1.7Mpa | | Air consumption :15-17m/min | | Max.rotary torque :7000N.m | | Rotary speed :0-80r/min | | Feed stroke :3000mm | | Compensation length :900mm | | Maximun push-pull force :20kn | | Lifting force :18kn | | Method of Feed :motor chain | | Travelling speed :2km/h | | Climbing capacity :30° | | Ground clearance :380mm | | Weight :5000kg | | Dimensions (LxWxH):5000X2200X2550mm | | Volume of diesel oil tank :100L | | |
Company Profile
1.What can you buy from us?
DTH drilling rig,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,underground jumbo drill rig ,hydraulic scaling rig,DTH hammer,drill rod,screw air compressor,water well drilling rig,truck mounted water well drilling rig,reverse circulation drilling rig,environmental drilling rig,screw air compressor,piston air compressor,pneumatic rock drill ,drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
